Welded Metal Frame

Welded Hollow Metal Door Frame for Commercial Applications

3-sided flush frames are designed to meet requirements for standard to maximum duty applications including commercial, industrial and institutional buildings. They are installed in both interior and exterior locations, and in virtually all types of buildings and wall constructions. Anchors are provided for new or existing walls.

Features

• 16 Gauge cold rolled steel (galvanized available)
• WGS - Assembled Frame: Squared, Welded Face Corners & Ground Smooth
• Includes welded-on spreader bars to serve as bracing during shipping (Note that spreader bars are to be removed prior to installation, and the attachment points may require touch up and finishing.)
• Pair frames available for double doors

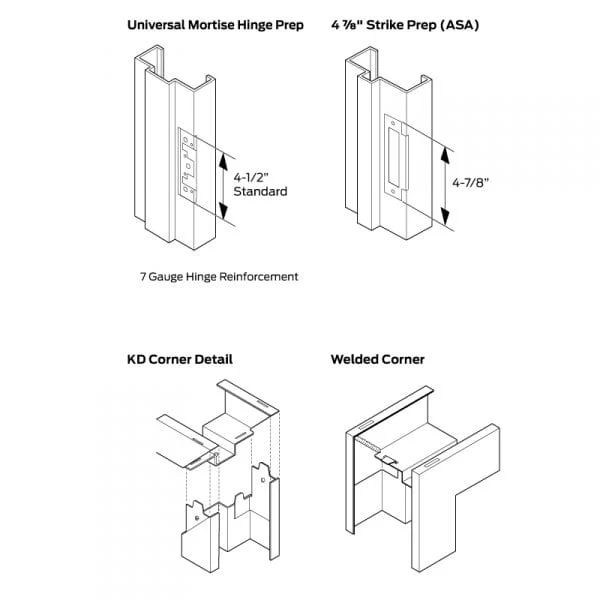

• Universal hinge preparations allow for easy field conversion from standard weight .134" thick hinges to heavyweight .180" hinges
• Hardware preparations and reinforcements are in accordance with ANSI A250.8-2014 (SDI 100)
• Fire-rated up to 3-Hours with WHI / ITS mylar label applied
