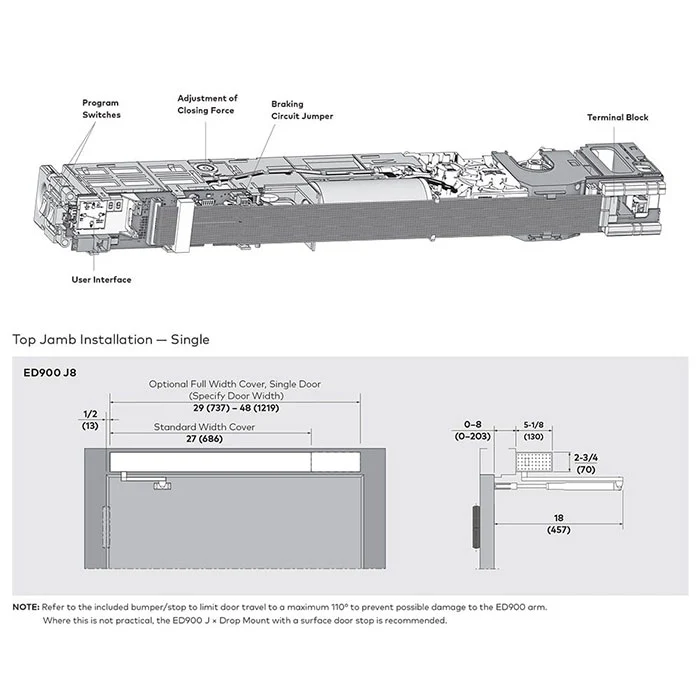

ED900-J8-SW Low Energy Swing Door Operator - Push-Side, Top Jamb Mount

Dorma ED900-J8-SW Low Energy Swing Door Operator, Push Side Top Jamb Mount, Standard Width Cover

dormakaba's most advanced low-energy swing door power operator

Employing an innovative electromechanical drive and a state-of-the-art microprocessor motion control system, the ED900 is DORMA's most advanced low-energy swing door power operator. The operator is exceptionally quiet, safe, and easy to use.

Advanced power assist: When operated manually, the ED900 demands little physical effort. Advanced power assist through the entire opening cycle makes even the heaviest-rated door feel light.

Fully ADA compliant: The operator is especially helpful for children, the elderly, persons with disabilities, or those carrying objects or pushing carts. This fully ADA-compliant device opens doors at precisely controlled speeds and forces, assuring safety for all users.

Advanced features: The ED900 also includes a blow-open feature for smoke ventilation (per NFPA code 92B), permanent hold-open, and an onboard power supply delivering 1.5 amps @ 24-volt DC, which eliminates the need for a secondary power supply. It includes twelve programmable options to accommodate even the most challenging door installations.

Small footprint: The ED900 low energy operator boasts the smallest footprint in the industry, up to 65 percent smaller than some other manufacturers' operators.

Onboard Power Supply: Delivers an unprecedented 1.5 amps @ 24 VDC: 3× more power than the competition. No need for a separate power supply.
