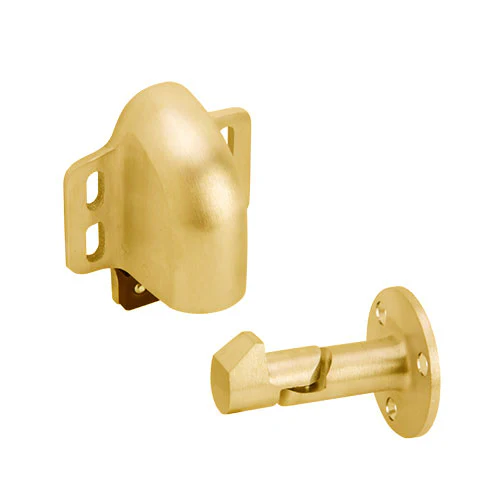

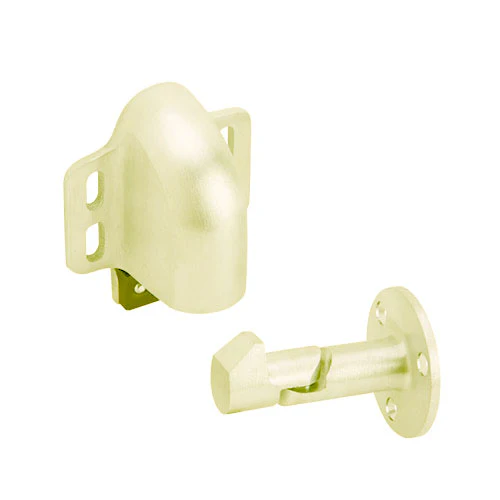

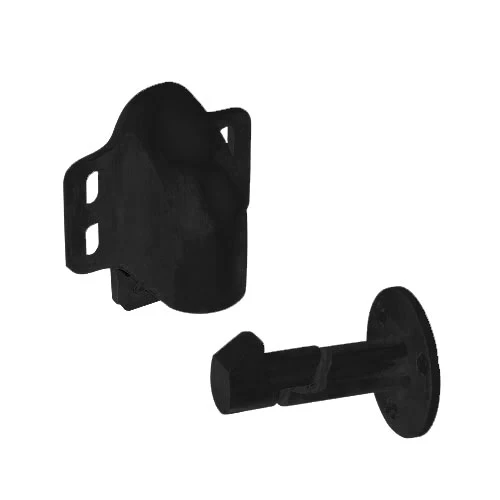

WS45 / WS45X Automatic Wall Holder
Ives WS45 (Drywall/Wood) / WS45X (Masonry) Auto Wall Holder
- WS45 is packed with fasteners for drywall/wood applications
- WS45X is packed with fasteners for heavy duty masonry applications
- Spring-loaded roller rides up the face of the strike, seating itself on the strike, holding the door firmly in the open position
- A heavy rubber pad cushions the shock and absorbs the sound
- With unit mounted on door and the strike on wall, vertical adjustment is available on body
- The strike is adjustable 45 degrees left or right, both adjustments easily accomplished at time of installation or at a later date
- Both meet ANSI/BHMA 156.16, L11291 for brass, and L31291 for aluminum
- Made from cast brass or aluminum
Dimensions
- Base height: 3-11/16"
- Base width: 3"
- Base projection: 2"
- Engaged projection: 3-11/16"
- Strike diameter: 2-3/8"
- Strike projection: 3"
Select Finish
Select Model
From $33.16
Original: $110.53
-70%WS45 / WS45X Automatic Wall Holder—
$110.53
$33.16
Description
Ives WS45 (Drywall/Wood) / WS45X (Masonry) Auto Wall Holder
- WS45 is packed with fasteners for drywall/wood applications
- WS45X is packed with fasteners for heavy duty masonry applications
- Spring-loaded roller rides up the face of the strike, seating itself on the strike, holding the door firmly in the open position
- A heavy rubber pad cushions the shock and absorbs the sound
- With unit mounted on door and the strike on wall, vertical adjustment is available on body
- The strike is adjustable 45 degrees left or right, both adjustments easily accomplished at time of installation or at a later date
- Both meet ANSI/BHMA 156.16, L11291 for brass, and L31291 for aluminum
- Made from cast brass or aluminum
Dimensions
- Base height: 3-11/16"
- Base width: 3"
- Base projection: 2"
- Engaged projection: 3-11/16"
- Strike diameter: 2-3/8"
- Strike projection: 3"
